Wet Cleaning Washer Dryer Combo Description
Distinctive Washing and Drying Designed for the Professional
Exquisite Appearance
Appearance is quite important, which can not only reflect the taste of the owner, but also improve the store’s luxury and enhance the brand influence.
The good quality always have good looking.
Scrub-free Washing
Special washing program, one-touch operation to help you say goodbye to the trouble of scrubbing when washing down jackets and wadded jackets.

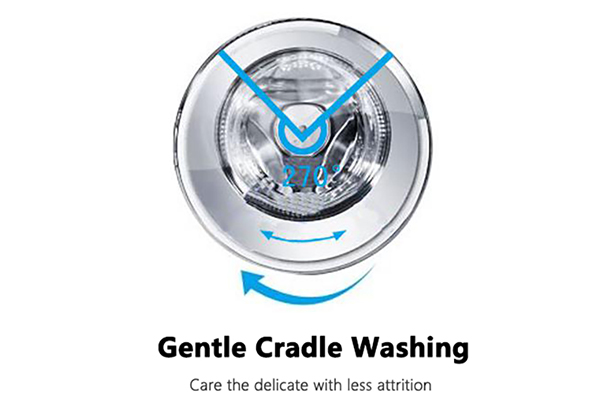

Cradle Washing
270° cradle gentle washing, no rollover to prevent agglomeration, good care for silky and flimsy linens, silk and continental quilts, etc.
Humidity Monitoring
Rather than setting the drying time, the auto drying process will be monitored by humidity.
Humidity value can be higher for the shirts to iron, 80% dry.
Humidity value should be low for clothes to be shelved because of season changing, to prevent going moldy, super dry.

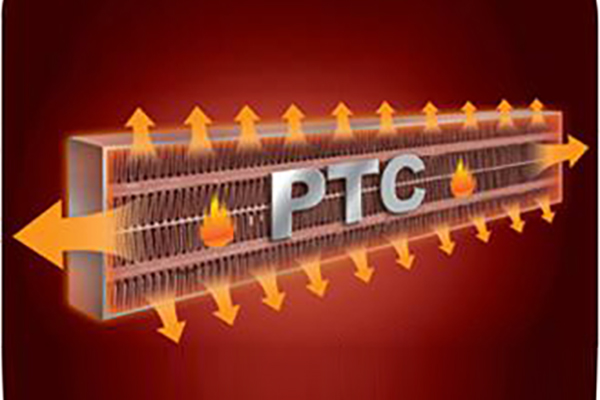

PTC Heating
Advanced PTC semiconductor heating components, automatically adjust the heating power, high heat conversion efficiency, 20% energy saving compared with the resistance wire heating.

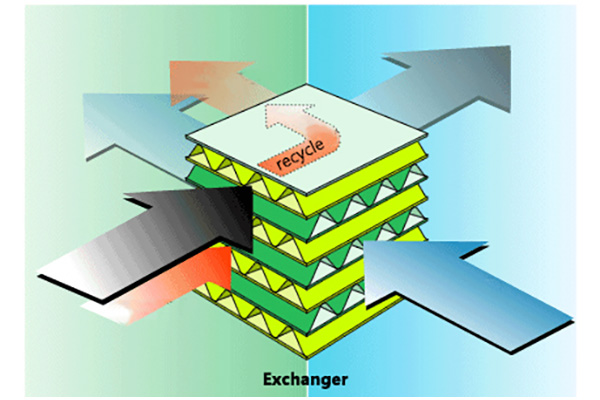

Heat Exchanger
Total heat exchanger combined with the PTC, 60% of the heat carried by hot air out of the drum will be recycled to preheat the inflowing air, and the drying energy consumption is reduced by 20%.

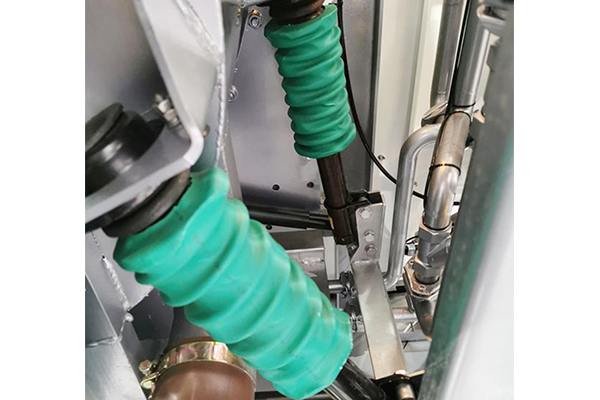

Soft Mount
Composite shock absorption design, with metal counterweight, more stable operation, 98% effective shock absorption.
Position sensing photodetector to prevent excessive vibration amplitude, and auto reset with breakpoint resume.
Specifications
Model | HW-25 | ||
Washing Capacity | kg | 25 | |
Drying Capacity | kg | 12.5 | |
Drum Volume | L | 250 | |
Washing Speed | rpm | 20-50 | |
Extract Speed | rpm | 600-850 | |
Voltage | V/Hz/p | 220/60/3 | |
Motor Power | kW | 4 | |
Fan Motor Power | kW | 0.55 | |
Electric Heating Power | Wash | kW | 9 |
Dry | kW | 7.2 | |
Steam Consumption | Wash | kg/batch | |
Dry | kg/batch | ||
Compressed Air Pressure | Mpa | 0.4-0.6 | |
Water Supply Pressure | Mpa | 0.2-0.4 | |
Dimensions | mm | 1200*1200*2100 | |
N.W. | kg | 550 |
Quality Parts
NO. | Item | Brand |
1 | Touch Screen HMI | |
2 | PLC | |
3 | Main Motor | Siemens |
4 | Inverter | LG |
5 | AC Contactor | Schneider |
6 | Thermal Relay | Schneider |
7 | Relay | Schneider |
8 | PTC | |
9 | Heat Exchanger | |
10 | Humidity Transducer |
